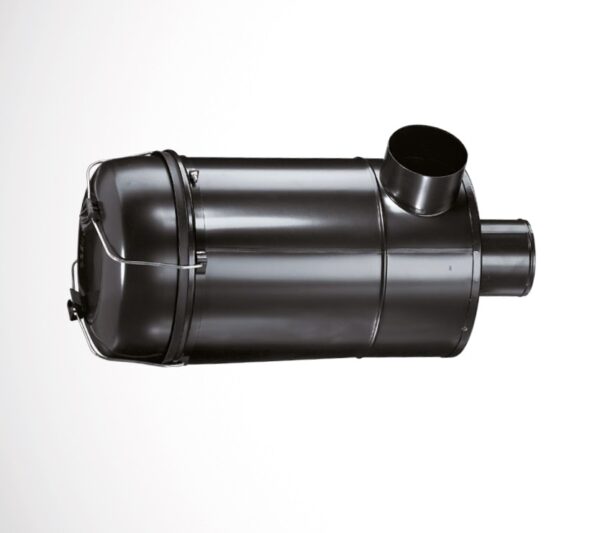

Mann Hummel Piclon Air Filter Housing 4532592404

Description Piclon 4532592404 Product Specifications Configuration Figure 1 Comes with secondary element Up to 12 cubic metres per minute Optional - Rain Cap 3908067910 or 3908067900 Optional - Straight Connector 3950027999 Optional - 90 degree Elbow 3950025999 Elements used in this Piclon Housing Main element C 20 325/2 Secondary element CF 1000 See pages 104 to 113 in the Mann Air Housing Catalogue Piclon Two-stage air cleaners with metal housing The proven two-stage air cleaners of the Piclon range have been an established component of the MANN HUMMEL range of air cleaners for many years. The air cleaners are particularly robust, have good filtration characteristics and are well suited for use in operating conditions with high dust and mechanical loads. Piclon air cleaners especially find application in quarries, cement plants or mining operations. In addition, the air cleaners are particularly suitable for applications which require a flame resistant housing. An axial tie-rod firmly welded to the housing and a securing nut keep the filter element securely in the sealed position. Piclon Advantages Robust filter elements with center tubes in metal Long service life with low pressure drop Especially robust metal design with flame-resistant housing Different versions available for dust discharge Secondary element available as option
