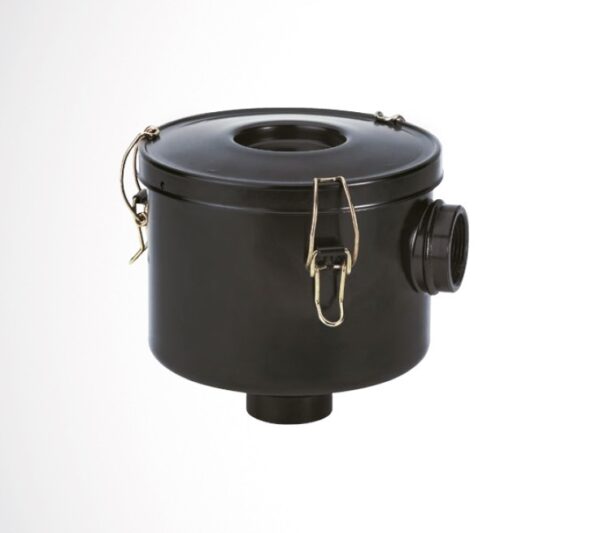

Mann Hummel Air Filter for Vacuum Systems 4503772105

Description Vacuum Air Cleaners Proven Solutions for Vacuum Technology Up to 1.8 cubic metres per minute 50mm diameter inlet port Max outer diameter 172mm Total height 170mm Elements used in this Pico Housing Main element C 1337 See pages 124 to 127 in the Mann Air Filter Catalogue Product Information The negative-pressure resistant vacuum air cleaners from MANN HUMMEL reliably protect components such as vacuum pumps and machines against contamination from intake dust and aerosols. Vacuum air cleaners are designed for installation in air and gas pipes and are used, for example, as intake air cleaners. They are airtight up to 950 mbar negative pressure and equipped with an efficient filter element Product Advantages Airtight and pressure-resistant up to 950 mbar negative pressure Robust metal design Different connections available Excellent filtration performance Stable, robust design Suitable filter elements for the respective application TECHNICAL NOTES The nominal flow rate of the air cleaner determines the air cleaner size. The air cleaner size is to be selected so that the nominal flow rate of the air cleaner is equal or greater than the air requirement. The air cleaner can be installed in a vertical or horizontal installation position. However, the air cleaner should not be mounted with the clean air outlet at the bottom as otherwise dirt can enter the clean air pipe during service.
