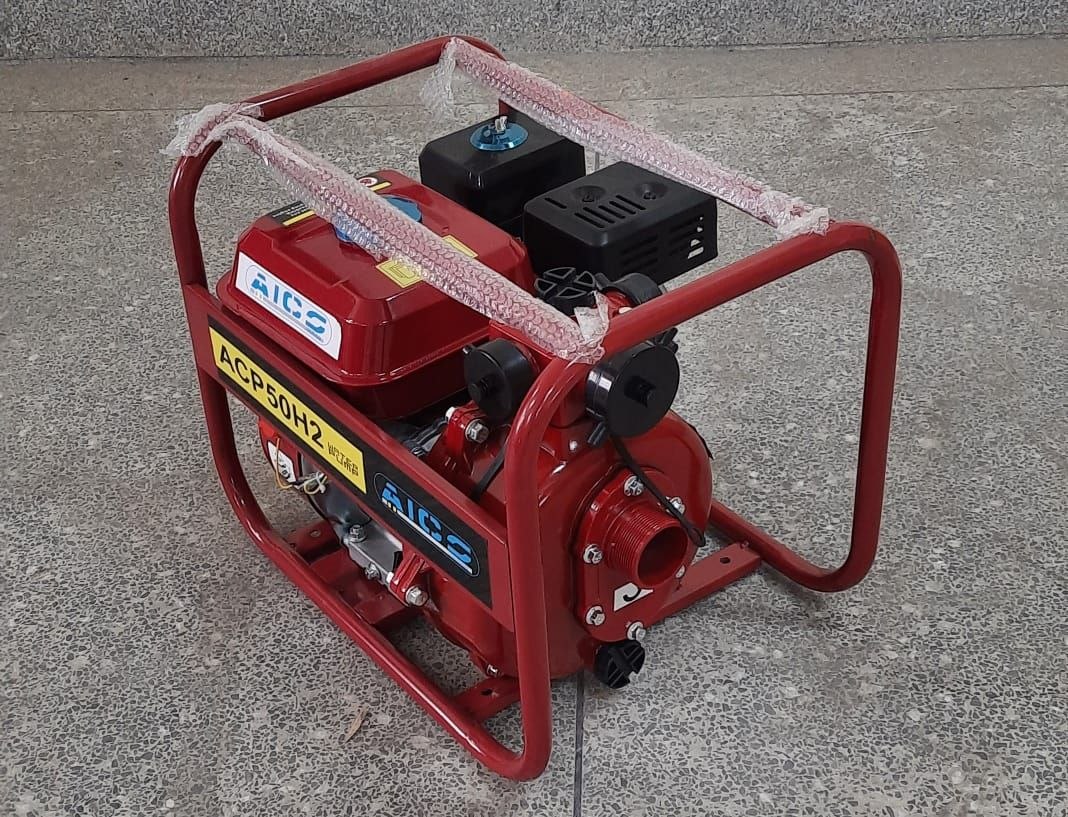

Technical Specifications Feature Details Model ACP50H2 (High Pressure Twin Impeller) Engine Power 8.0 HP / 3600 RPM Engine Type 230cc, 1-Cylinder, 4-Stroke, OHV Air-Cooled Petrol Engine Pump Head Design Twin Impeller System (Consecutive pressure compounding) Inlet Size 2 Inches (50mm) Discharge Configuration 3-Way Multi-Port Outlet Casing: • 1 x 2-Inch (50mm) high-flow central port • 2 x 1.5-Inch (40mm) high-pressure side ports Maximum Total Head 90 to 160 Meters vertical lift limit (depending on pipe restriction and setup) Maximum Flow Rate Approx. $30\text{ m}^3\text{/hr}$ (Up to 500 Liters per minute max displacement) Maximum Suction Lift 8 Meters vertical siphon depth Fuel / Oil Capacity 3.6 Litres Petrol / 0.6 Litres Engine Oil ($10\text{W-}30$ or $20\text{W-}50$) Safety System Integrated low-oil sensor shutdown alert
