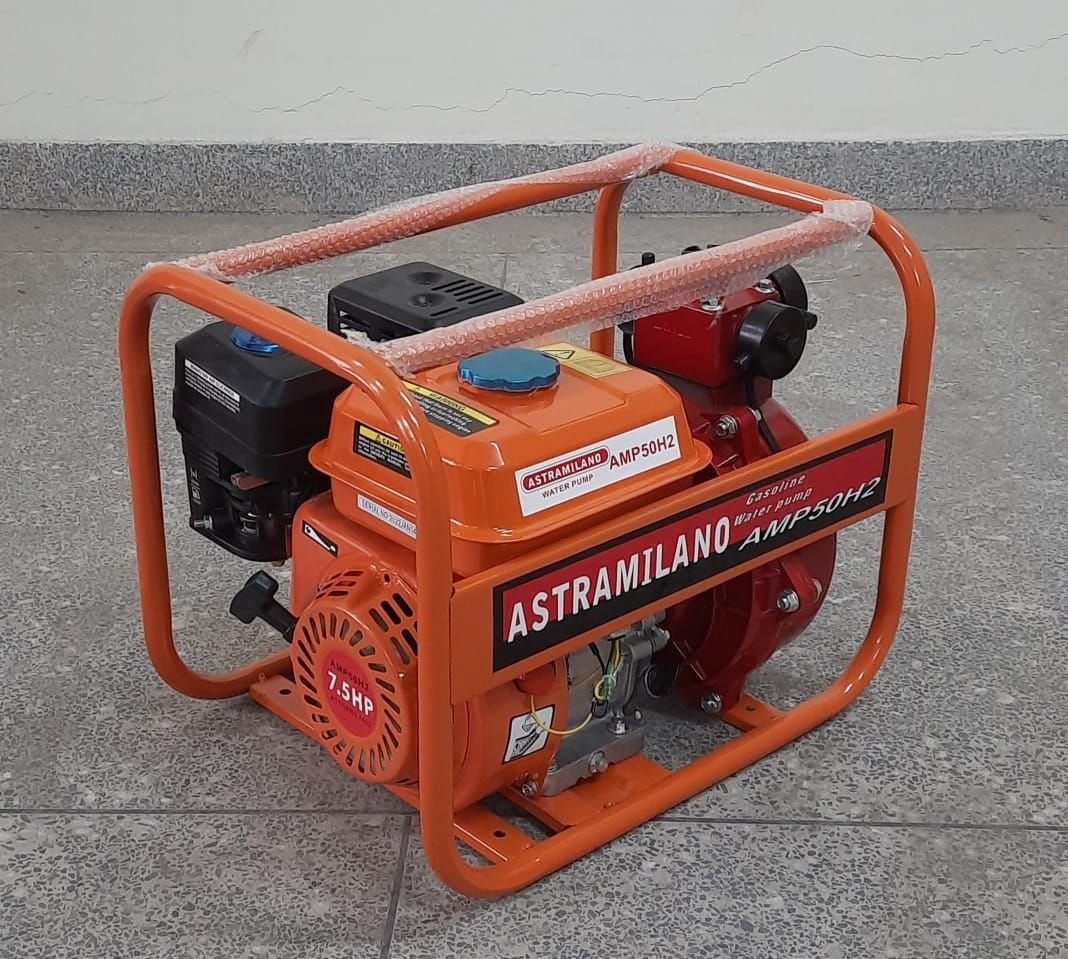

Technical Specifications Feature Details Model AMP50H2 (High Pressure / Twin Impeller) Engine Power 7.5 HP (Heavy-duty 4-Stroke, OHV, Air-Cooled Petrol) Pump Design Twin Impeller System (Doubles output pressure velocity) Inlet Size 2 Inches (50mm) Outlet Configuration Often comes with a 3-Way Multi-Port Discharge: • 1 x 2-Inch main outlet • 2 x 1.5-Inch side auxiliary outlets Maximum Head (Vertical Lift) 90 to 100 Meters (Max vertical elevation cap) Maximum Flow Volume Up to $30\text{ m}^3\text{/hr}$ (Rated flow $\approx 23\text{ m}^3\text{/hr}$ under pressure load) Maximum Suction Lift 7 to 8 Meters vertical siphon depth Operating Speed 3,600 RPM
